Stock 3d spiral bevel gear set models for 3,4,5-axis CNC machining.
Order online for $495.00US.
Our stock gears cover 90% of gears known as Gleason or Klingelnberg. Custom gear models and 3d gear generating software available at different price.

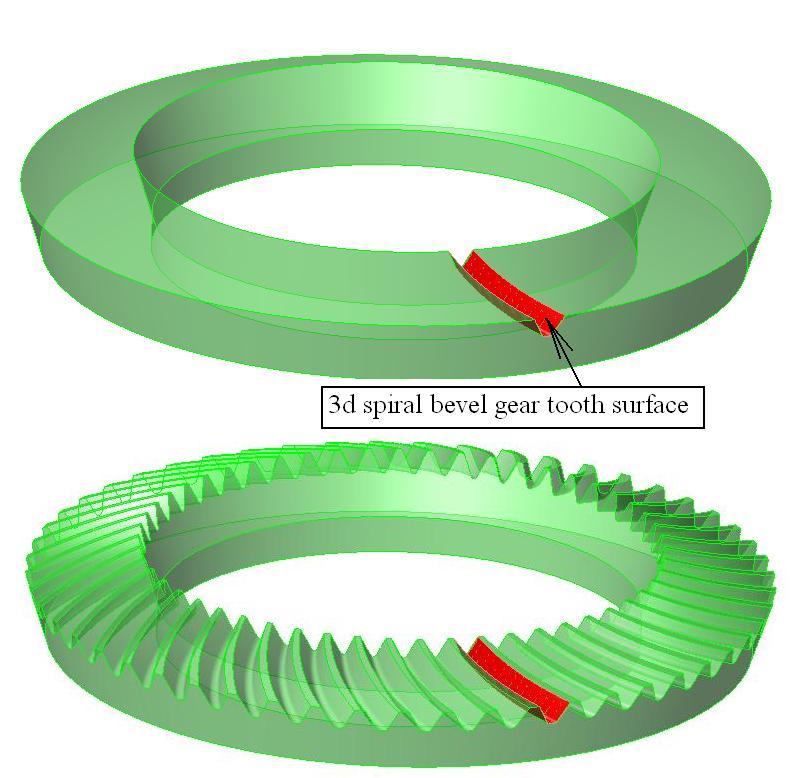

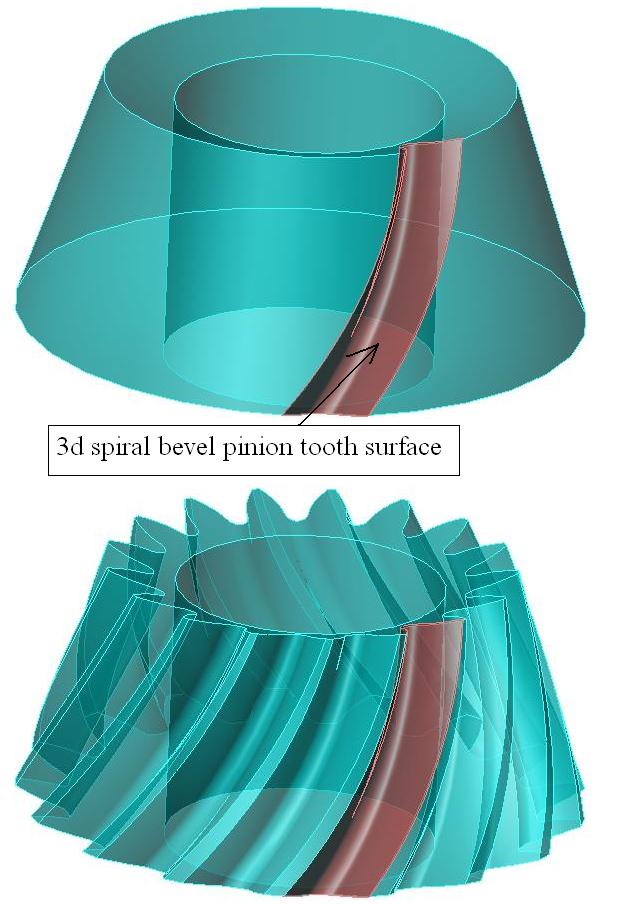

Sample use of 3d spiral bevel gear tooth surface Sample use of 3d spiral bevel pinion tooth surface
Right click on the image to save or view as full size.


Download samples of delivery:
Sample 3d spiral bevel gear tooth surface in IGES
Sample 3d spiral bevel pinion tooth surface in IGES

Input your gear data into “Buy Now” box.
N1 – Number of teeth on gear #1 (15 or more). For example: 53
N2 – Number of teeth on gear #2(pinion) (15 or more). For example: 17
PD – Pitch diameter of gear #1. For example: 1278.32
HAND1- Hand of spiral on gear #1 (LEFT or RIGHT). For example: LEFT
B –Face width. For example: 201.37
A1 – Pressure angle (20 or 22.5). For example: 22.5
A2 – Spiral angle ( any number from 0 to 45). For example: 25
G(K) – Commonly called Gleason or Klingelnberg (input G or K). For example: K
Sample input: 53_17_1278.32_LEFT_201.37_22.5_25_K
N1_N2_PD1_HAND1_B_A1_A2_G(K)
